Formation of nanostructured surface layer, the white layer, through solid particles impingement during slurry erosion in a martensitic medium-carbon steel

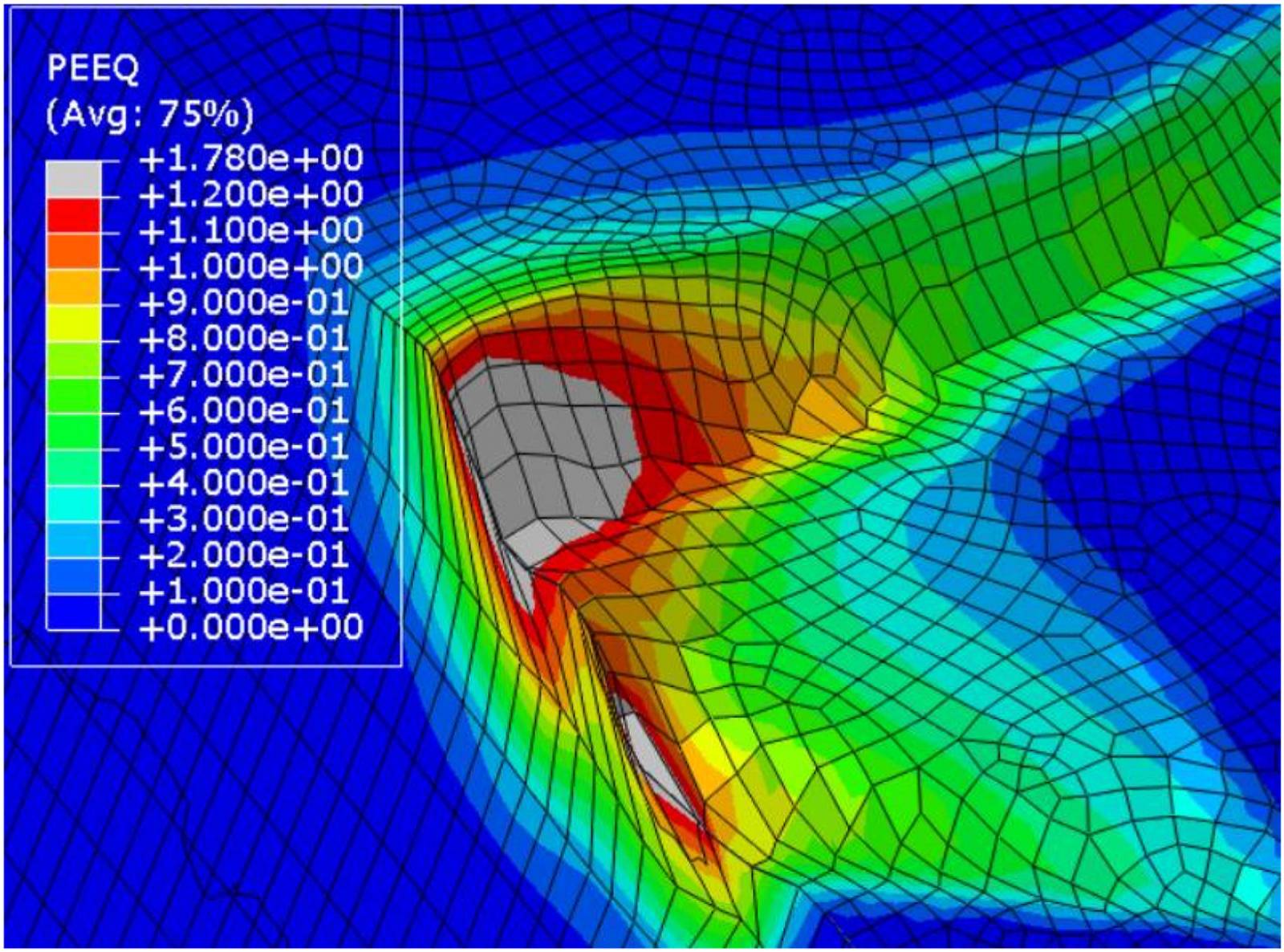

The maximum equivalent plastic strain on the topmost surface region after five impacts (Image by Matti Lindroos).

The extremely altered topmost surface layer, known as the white layer, formed in a medium-carbon low-alloy steel as result of impacts by angular 10–12 mm granite particles during the slurry erosion process is comprehensively investigated. For this purpose, the characteristics, morphology, and formation mechanism of this white layer are described based on the microstructural observations using optical, scanning and transmission electron microscopies as well as nanoindentation hardness measurements and modelling of surface deformation. The white layer exhibits a nanocrystalline structure consisting of ultrafine grains with an average size of 200 nm. It has a nanohardness level of around 10.1 GPa, considerably higher than that of untempered martensitic bulk material (5.7 GPa) achieved by an induction hardening treatment. The results showed that during the high-speed slurry erosion process, solid particle impacts brought forth conditions of high strain, high strain rate, and multi-directional strain paths. This promoted formation of a cell-type structure at first and later, after increasing the number of impacts, development of subgrains following by subgrain rotation and eventually formation of a nanocrystalline structure with ultra-high hardness. The model confirmed that high strain conditions – much higher than required for the onset of plastic deformation – can be achieved on the surface resulting in severe microstructural and property changes during the slurry erosion test.

Collaboration open access article with University of Oulu, VTT Technical Research Centre of Finland, SMaRT@UNSW (Australia), and Tampere University, Tampere Wear Center: V. Javaheri, S. Sadeghpour, P. Karjalainen, M. Lindroos, O. Haiko, N. Sarmadi, S. Pallaspuro, K. Valtonen, F. Pahlevani, A. Laukkanen, J. Kömi, Formation of nanostructured surface layer, the white layer, through solid particles impingement during slurry erosion in a martensitic medium-carbon steel, Wear 496–497:204301(2022) https://doi.org/10.1016/j.wear.2022.204301
