Mechanically driven strategies to improve electromechanical behaviour of printed stretchable electronic systems

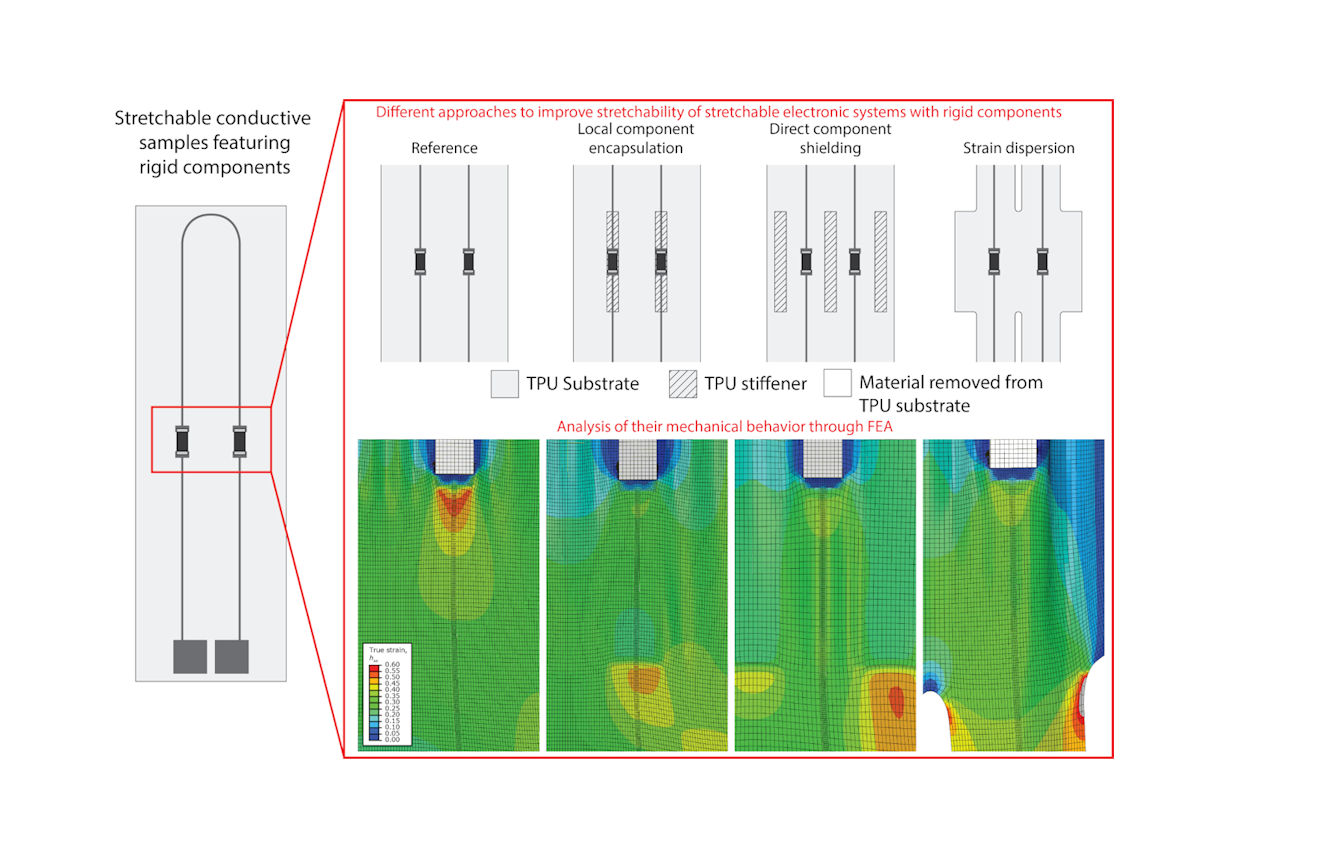

Stretchable electronics promise to extend the application range of conventional electronics by enabling them to keep their electrical functionalities under system deformation. Within this framework, development of printable silver-polymer composite inks is making possible to realize several of the expected applications for stretchable electronics, which range from seamless sensors for human body measurement (e.g. health patches) to conformable injection moulded structural electronics. However, small rigid electric components are often incorporated in these devices to ensure functionality. Under mechanical loading, these rigid elements cause strain concentrations and a general deterioration of the system’s electrical performance. This work focused on different strategies to improve electromechanical performance by investigating the deformation behaviour of soft electronic systems comprising rigid devices through Finite Element analyses. Based on the deformation behaviour of a simple stretchable device under tensile loading, three general strategies were proposed: local component encapsulation, direct component shielding, and strain dispersion. The FE behaviour achieved using these strategies was then compared with the experimental results obtained for each design, highlighting the reasons for their different resistance build-up. Furthermore, crack formation in the conductive tracks was analysed under loading to highlight its link with the evolution of the system electrical performance.

Donato Di Vito et al. 2020 Scientific Reports 10.1 1-11
