Climatological test years in Finland for building physics

In hygrothermal modelling of structures, it is essential to examine the behaviour of the structures in outdoor air conditions that represent the environmental extremes of moisture stress. A climatological test year for building physics refers to these conditions of a full year in a specific location.

Finding the critical test years is particularly important because no safety factors are used for outdoor air conditions in the building physical examinations.

The datasets, comprising years 1980–2009, contained the following variables relevant for building physics studies at an hourly resolution: temperature, relative humidity, wind speed and direction, rain, driving rain, and direct and diffuse solar radiation. The above-mentioned factors vary with the geographical location of the building and the cardinal point. In addition, the outdoor air conditions near the building are also affected by the position and shape factors of the building that cause a so-called microclimate.

The building physics research group and The Finnish Meteorological Institute have determined critical test years in Finnish climate in regards to the hygrothermal performance of structures. The test years were determined in the FRAME-project so, that they corresponded to actual calendar years. When choosing the test years, the following factors were taken into account:

  • All the main outdoor air conditions that have an impact on the hygrothermal behaviour of structures (with the exception of the atmospheric dispersion of long-wave heat radiation).
  • Different structural solutions and materials.
  • Selected operational criteria (mould growth and moisture condensation) and reference variables (the maximum value of mould index and the maximum amount of condensed moisture).
  • The geographical location of the building and all cardinal points.
  • Height of the building.

The test years were determined from a 30-year period in three different climates: the current climate (1980–2009), the 2050 climate (2040–2069) and the 2100 climate (2070–2099).

The most critical climatological test years

The following principles were followed in choosing the climatological test years of the current and future climates:

  • At least 90% of all years were less critical than the chosen test year.
  • Test years were selected from various localities. Original climate data was chosen to be the data from 1980–2009.

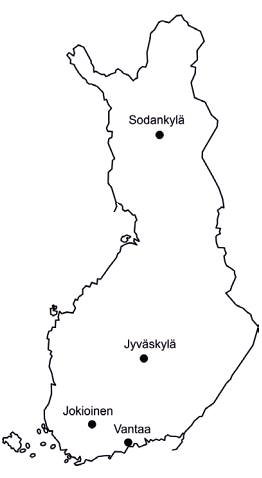

  • The selected localities were Vantaa, Jokioinen, Jyväskylä and Sodankylä. These locations are geographically located in different parts of Finland and in different climatic regions. The selected test years were also considered to sufficiently represent the whole country.
  • The following circumstantial factors of the outdoor air from all years were taken into account: temperature, relative humidity, total solar radiation (direct and diffuse radiation), rainfall on a horizontal surface, as well as wind speed and direction.
  • All points of the compass were taken into account, and the test years were determined in the most critical compass point (in terms of the hygrothermal behaviour of structures).

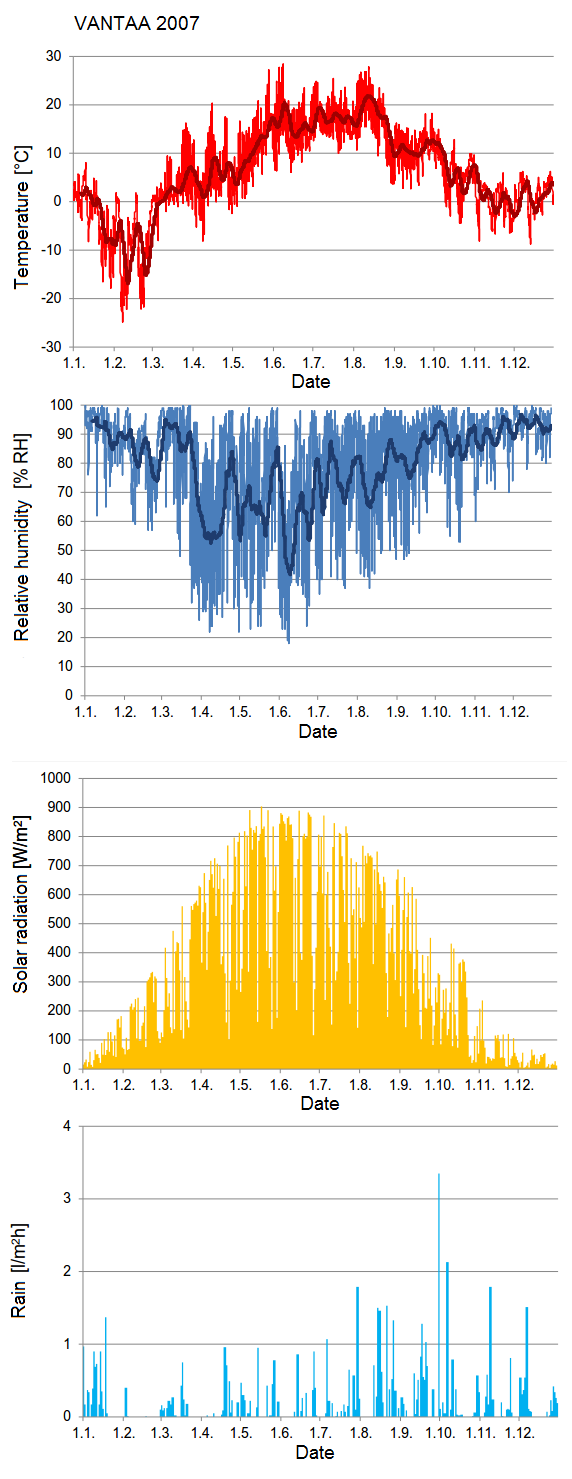

The most critical years were Vantaa 2007 and Jokioinen 2004, and they were also generally valid for most types of envelope assemblies. From these two, the one that is used in hygrothermal modelling depends on the analysis case: The current climate Vantaa 2007 is used when the rain affects the internal moisture behaviour of a structure (i.e. there is a leakage). In the current climate, Jokioinen 2004 is more critical when the internal part of the structure is protected from the rain. These defined test years can be used throughout Finland.

Differences in the driving rain and solar radiation in different compass points have a fundamental effect on the value of the mould index when using weather data from Vantaa. When using Jokioinen, the key issue is the relative humidity of outside air; the driving rain and solar radiation have a minor effect.

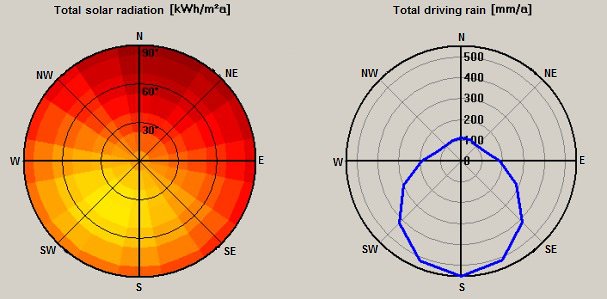

Total solar radiation (direct and diffuse radiation) on divergent surfaces (0° = horizontal, 90° = vertical) and total driving rain (temperature ≥ 0 °C) on vertical surfaces in Vantaa 2007 data. Total solar radiation on a sunny surface = 1149 kWh/(m2a) an on a shady surface = 354 kWh/(m2a).

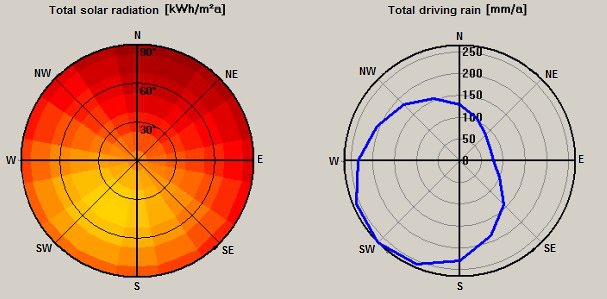

Total solar radiation (direct and diffuse radiation) on divergent surfaces (0° = horizontal, 90° = vertical) and total driving rain (temperature ≥ 0 °C) on vertical surfaces in Jokioinen 2004 data. Total solar radiation on a sunny surface = 1096 kWh/(m2a) an on a shady surface = 361 kWh/(m2a).
Future climates

Climate change is predicted to increase the outdoor air temperatures as well as the amount of rain and cloudiness. Also, the number of rainy days is expected to increase in the winter, but in the summer the amount may decrease. In addition, wind speed and relative humidity outside is expected to rise slightly in the winter.

The Finnish Meteorological Institute produced artificial weather models for years 2030, 2050 and 2100 to reflect the anticipated effects of climate change. The climate scenarios are based on the A2 greenhouse gas scenario, according to which emissions would continue to increase during the entire 21st century (the pessimistic A2-development option was selected so that the results would be on the safe side).

The critical test years of the current climate, Vantaa 2007 and Jokioinen 2004, are typically the most critical in the 2050 and 2100 climates as well. Future climates are therefore based on Vantaa and Jokioinen. However, the user must take into account that the differences between the observational and modelled future weather datasets in the relevant statistical quantities are dependent on the climate model projections, either precisely or approximately.

Long-wave radiation and prepared weather data files for building physical calculation programs

Long-wave radiation down from the atmosphere was not included in the original hourly data, that was used to choose the test years. However, in the literature experimental models have been presented, that can be used to calculate the hourly values of long-wave radiation from solar radiation values, and temperature and relative humidity values measured near the ground. Based on comparisons, the research group chose one of these models, which was used to calculate the long-wave radiation down from the atmosphere for the climatological test years chosen in the FRAME-project.

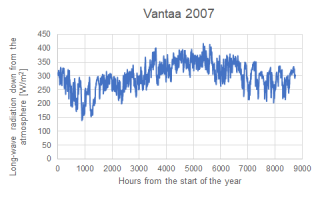

The hourly values of long-wave radiation coming down from the atmosphere in the climatological test year Vantaa 2007.

The calculation code and source information for the hourly long-wave radiation values, short descriptions of climatological quantities, and references to the publications are presented on Github. The code found through the link also compiles ready-made weather data files for the most common building physical simulation programs, in this case wac files for WUFI Pro and 2D, ccd files for Delphin 5, and csv files common use. Using the files reserved for Delphin 6 requires compiling them as c6b files with a separate CCM Editor, which is freely available on the webpage of the developers of Delphin. Result files can also be used with other programs, such as COMSOL Multiphysics. In the files the outdoor relative humidity is given as relative to liquid water (RHe_water), which is common practise in atmospheric sciences and most RH-sensors, but also as relative to ice (RHe_ice), which is the custom in WUFI and Delphin.

The weather data for calculation programs is downloadable (approximately 15 MB).

The code and weather data files for building physical simulation programs accessible through the links presented above are free to use both commercially and non-commercially. The aim has been to compile the material with care, but no guarantee of its correctness or suitability is given. It is recommended that the functionality and suitability of the code and weather data files are tested before actual use. If you notice an error, you can report it via email.
